CORIMEC BALLISTIC

CORIMEC BALLISTIC | mali ballistic 01 long
CORIMEC BALLISTIC | mali ballistic 02 long
CORIMEC BALLISTIC | mali ballistic 03 long
CORIMEC BALLISTIC | mali ballistic 04 long

The Corimec Ballistic system has been designed to ensure complete protection of the building for threat category C4 (protection against close-range shots, direct hits with a 107mm rocket, and 120mm mortar with percussion fuse) and for lateral protection against threat category A3 (bombardment with 7.62 AP hard core) according to STANAG 2280 "Test and Classification Procedures for the Effects of Weapons on Structures."

The system can be installed on our modular buildings at a later stage, keeping the existing units unchanged.

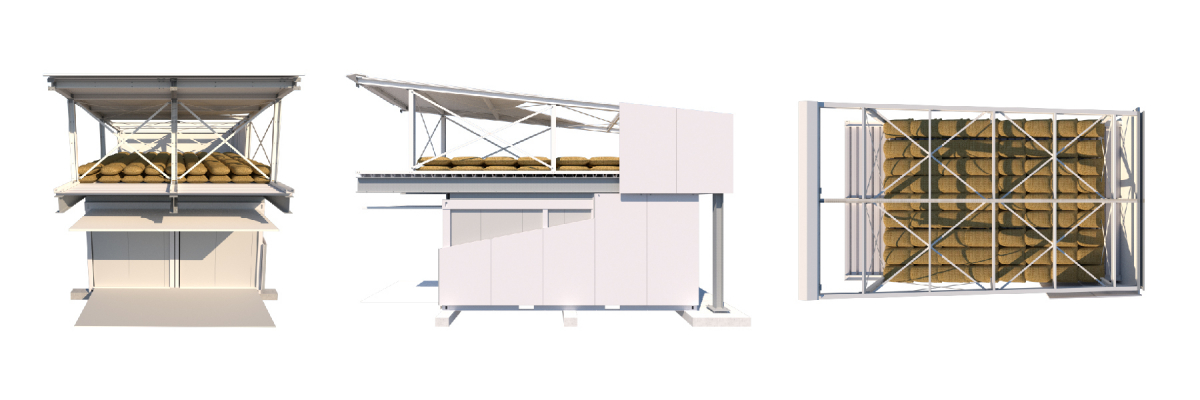

CORIMEC BALLISTIC | corimec ballistic 01


  • External layer in S235 steel sheet

  • Distance of 1 m from the underlying layers

  • Layer of sandbags

  • Self-supporting prefabricated steel structure to support and protect the above layers

  • External ballistic steel sheet of 10 mm

  • Internal empty space of 80 mm

  • Internal ballistic steel sheet of 10 mm (as above)

FB7 certified ballistic steel doors against explosions and ballistic attacks according to EN 1522-1523

FB7/BR7 certified ballistic windows against explosions and ballistic attacks according to EN 1522-1523 and EN 1063
